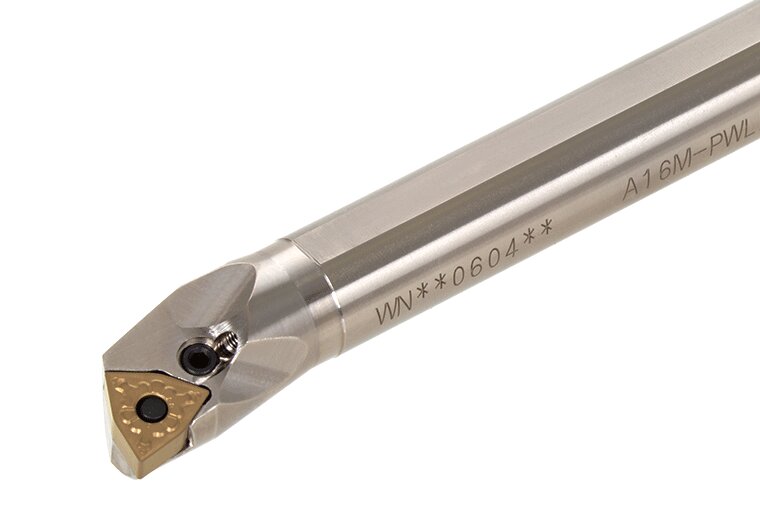

A16M-PWLNR0604-D200
Produktnummer:
6733307
EAN:
4543885757394
Hersteller-Nr.:
6733307
Produktinformationen "A16M-PWLNR0604-D200"

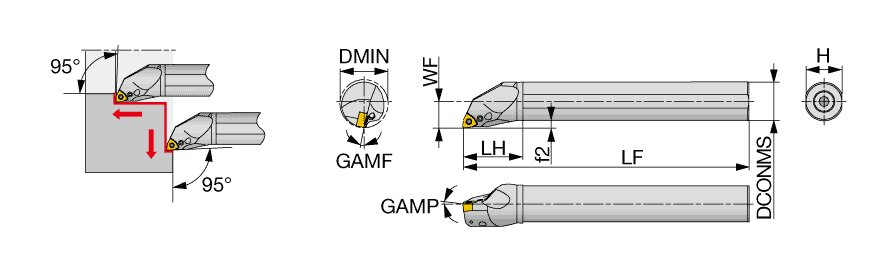

| Application: | For 80deg Trigon insert |
|---|---|
| Bezeichnung Wendeplatte (MIID): | WNMG060408E |
| Funktionsbreite (WF): | 11,00 |
| Funktionslänge (LF): | 150,00 |
| Kopflänge (LH): | 32,00 |
| Min. Bohrungsdurchmesser (DMIN): | 20,00 |
| Rückspanwinkel (GAMP): | -8° |
| Schafthöhe (H): | 15,00 |
| Seitenspanwinkel (GAMF): | -17° |
| Trägermaterial: | Stahl |
