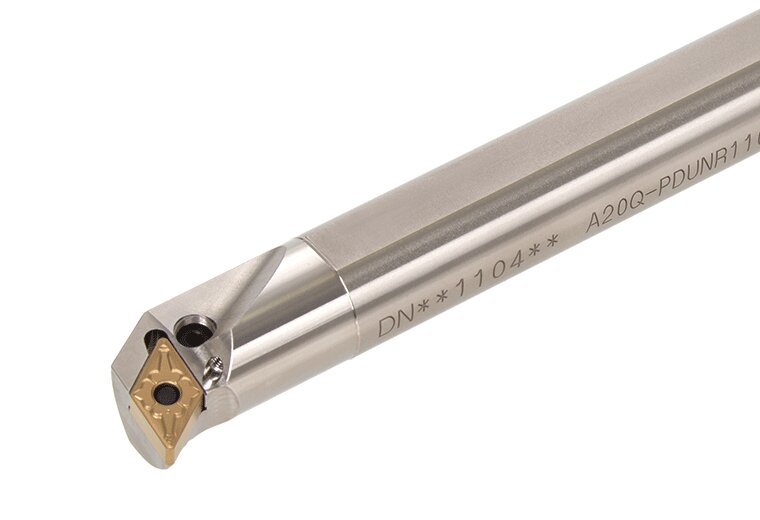

A20Q-PDUNL1104-D250
Produktnummer:
6733316
EAN:
4543885757486
Hersteller-Nr.:
6733316
Produktinformationen "A20Q-PDUNL1104-D250"

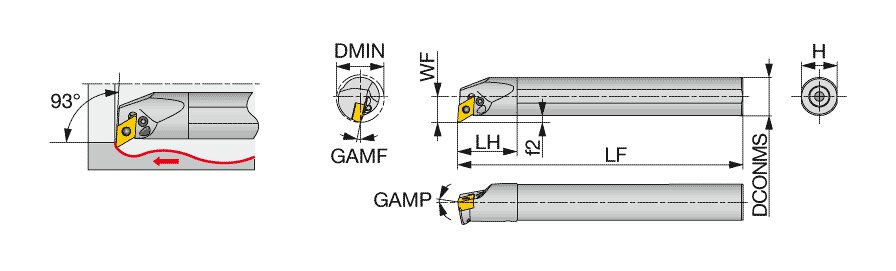

| Application: | For 55deg Rhombic insert |
|---|---|
| Bezeichnung Wendeplatte (MIID): | DNMG110408E |
| Funktionsbreite (WF): | 13,00 |
| Funktionslänge (LF): | 180,00 |
| Kopflänge (LH): | 36,00 |
| Min. Bohrungsdurchmesser (DMIN): | 25,00 |
| Rückspanwinkel (GAMP): | -6° |
| Schafthöhe (H): | 18,00 |
| Seitenspanwinkel (GAMF): | -14° |
| Trägermaterial: | Stahl |
