A32S-AWLNL08-D400
Produktnummer:
6852858
EAN:
4543885528581
Hersteller-Nr.:
6852858
Produktinformationen "A32S-AWLNL08-D400"

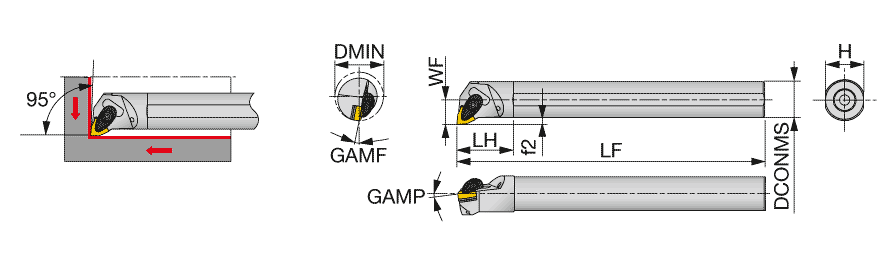

| Application: | For 80deg Trigon insert |
|---|---|
| Bezeichnung Wendeplatte (MIID): | WNMG080408 |
| Funktionsbreite (WF): | 22,00 |
| Funktionslänge (LF): | 250,00 |
| Kopflänge (LH): | 50,00 |
| Min. Bohrungsdurchmesser (DMIN): | 40,00 |
| Rückspanwinkel (GAMP): | -6° |
| Schafthöhe (H): | 30,00 |
| Seitenspanwinkel (GAMF): | -10° |
| Trägermaterial: | Stahl |
