A20Q-PCLNL09

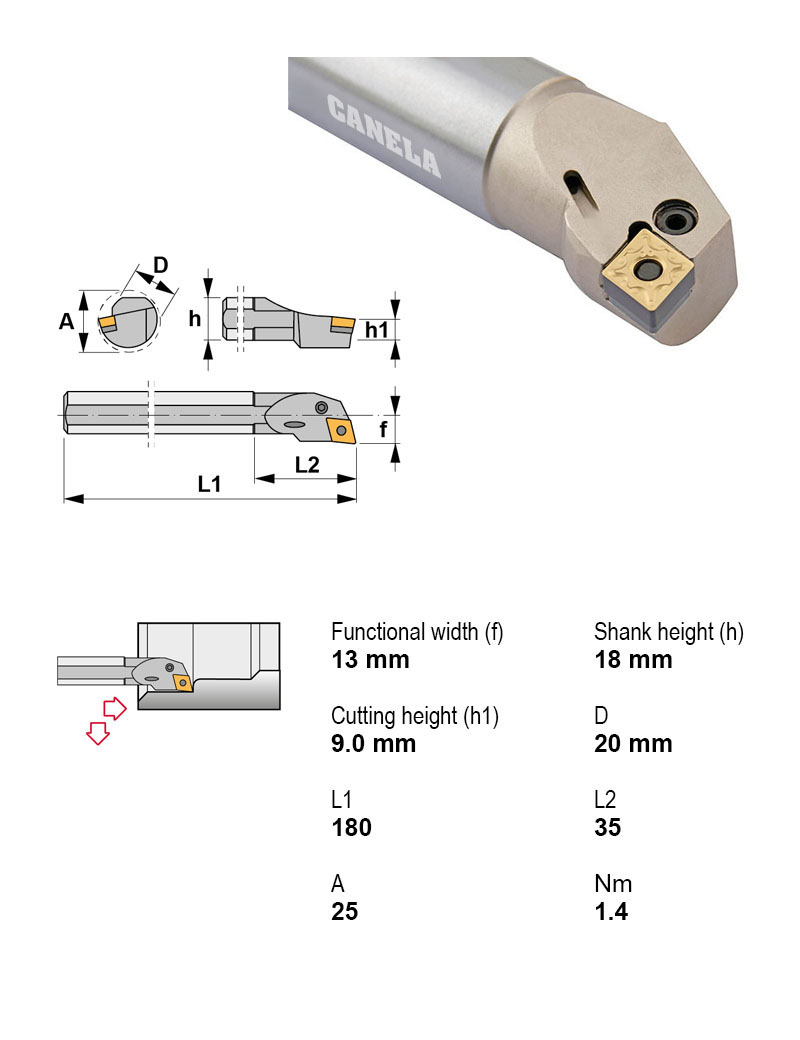

Bohrstange zum Innendrehen mit rhombischen negativen WSP (80° Winkel) | mit IK.
Produktnummer:
A20Q-PCLNL09
Produktinformationen "A20Q-PCLNL09"
| DCONMS [Aufnahme-Ø, masch.seitig]: | 20,00 |
|---|---|
| Bezeichnung Wendeplatte (MIID): | CN..0903.. |
| Funktionsbreite (WF): | 13,00 |
| Funktionslänge (LF): | 180,00 |
| Kopflänge (LH): | 35,00 |
| Min. Bohrungsdurchmesser (DMIN): | 25,00 |
| Rückspanwinkel (GAMP): | -5° |
| Schafthöhe (H): | 18,00 |
| Seitenspanwinkel (GAMF): | -13,5° |
| Trägermaterial: | Stahl |
